AuthZEN Authorization Gateway

The AuthZEN AI / API Authorization Gateway turns your gateway into a centralized authorization control point for APIs and AI workloads. It acts as an AuthZEN-compliant Policy Enforcement Point, integrating with any AuthZEN-compliant PDP without embedding authorization logic into your applications.

AuthZEN Gateway Security Scenarios

The gateway supports multiple authorization scenarios:

API Security with Policy-Based Access Control (PBAC)

Enforce API protection using structured policies based on roles, attributes, and authentication context, integrated with an AuthZEN-compliant PBAC PDP.

API Security with Relationship-Based Access Control (ReBAC)

Authorize access dynamically based on relationships between subjects and resources, integrated with an AuthZEN-compliant ReBAC PDP.

MCP Security

Secure MCP services by exposing them through the gateway and delegating authorization to your PBAC or ReBAC AuthZEN PDP.

MCP Apps Security

Secure MCP Apps by exposing the interactive UI based on the gateway and delegating authorization to your AuthZEN PDP.

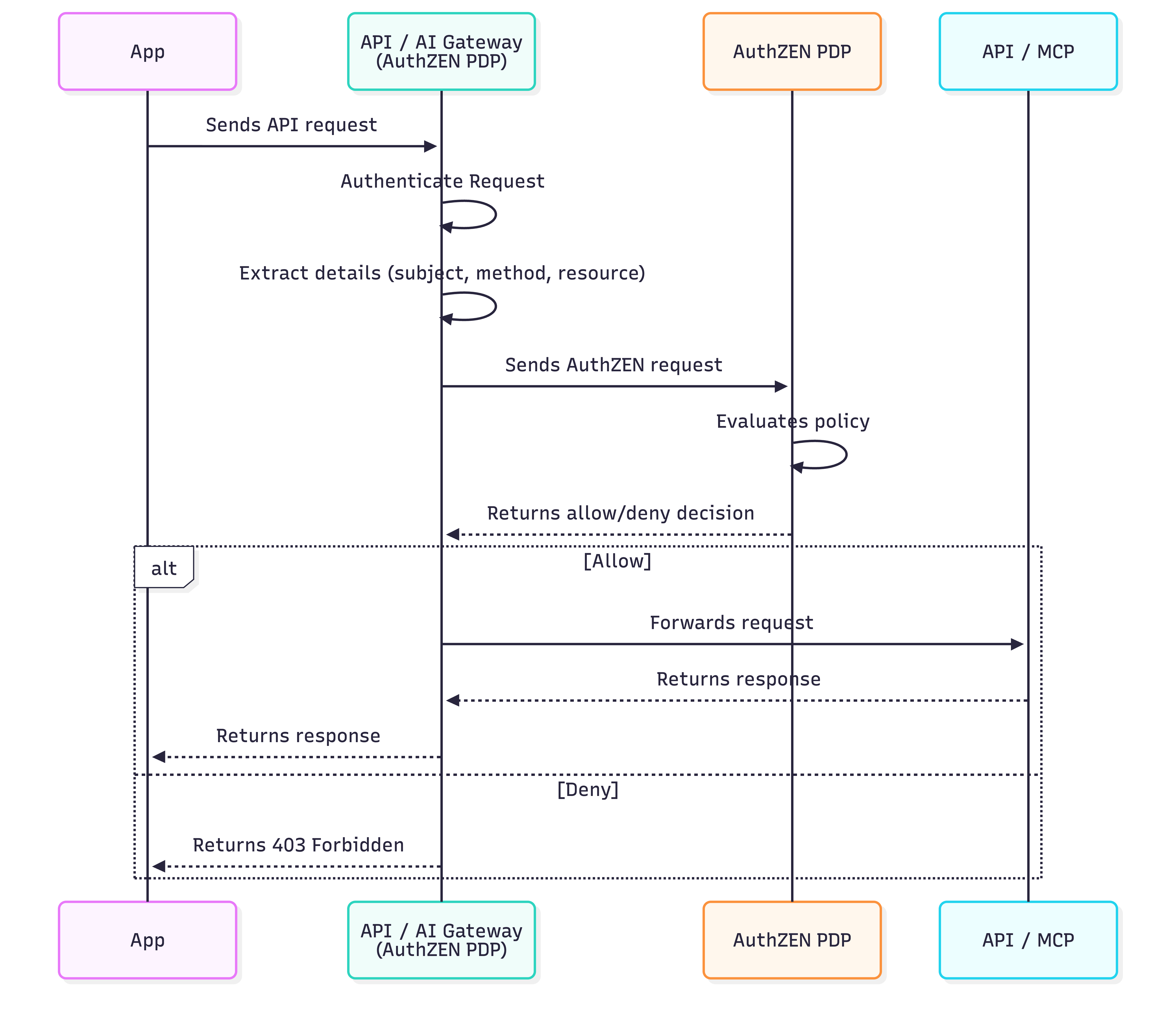

API Basic Case: A Quick Look at How It Works

When you expose an API protected by OAuth and the AuthZEN standard, the plugin automatically builds an AuthZEN request and sends it to the configured AuthZEN PDP.

{
  "pdp": {
    "host": "https://<your-authzen-pdp>",
  },
  "subject": {
    "type": "<subject_type>",
    "id": "<subject_identifier>",
    "properties": {}
  },
  "resource": {
    "type": "<resource_type>",
    "id": "<resource_identifier>",
    "properties": {}
  },
  "action": {
    "name": "<action_name>"
  }
  "context": {
  }
}

The PDP evaluates the request against its policies and returns a decision. Thanks to AuthZEN standardization, you can:

Centralized authorization decisions

Decoupled authorization logic is in control of the journey

Interoperability across AuthZEN PDPs

Built on ZeroTrust principles across your API and AI authorization workflows

Example Cases

API Security Use Cases

PBAC Example Use Case

API Security based Policies

This example demonstrates policy-based access control (PBAC), where decisions are based on explicit policies defined around roles, attributes, and authentication context.

Authorization Requirement

Only admin users authenticated with a phishing-resistant authenticator are authorized to access confidential documents based on their roles and tenant.

Plugin Configuration

AuthZEN configuration:

{
  "pdp": {
    "host": "http://cerbos:3593",
    "platform": "cerbos"
  },
  "subject": {
    "type": "user",
    "id": "claim::preferred_username",
    "properties": [
      { "key": "roles", "claim": "realm_access.roles" },
      { "key": "tenant", "claim": "organization" },
      { "key": "acr", "claim": "inherence" },
      { "key": "amr", "claim": "passkeys" }
    ]
  }
}

Plugin Logic

  • Extract preferred_username, acr, amr, and other relevant claims from the JWT.

  • Build the AuthZEN request with resource set to the HTTP URI and action set to the HTTP method, following the AuthZEN REST API Gateway Profile.

    • {
  "subject": {
    "type": "identity",
    "id": "embesozzi",
    "properties": [
      { "key": "roles", "claim": "admin" },
      { "key": "tenant", "claim": "tenant-1" },
      { "key": "acr", "claim": "inherence" },
      { "key": "amr", "claim": "passkeys" }
    ]
  },
  "resource": {
    "type": "route",
    "id": "/api/tenant-1/documents/confidential"
  },
  "action": { "name": "GET" }
}

  • Send the request to the Cerbos PDP.
  • Cerbos evaluates policies and returns EFFECT_ALLOW or deny.
  • The gateway enforces the decision.

    • ReBAC Example Use Case

    API Security based Relationships

    This example demonstrates relationship-based access control (ReBAC), where permissions depend on relationships between users and roles, policy as data.

    Authorization Requirement

    Only authenticated analyst users can view documents.

    Plugin Configuration

    AuthZEN configuration:

    {
  "pdp": {
    "host": "https://openfga-pdp",
    "platform": "openfga"
  },
  "subject": { "type": "user", "id": "claim::sub" },
  "resource": { "id": "view-documents", "type": "role" },
  "action": { "name": "assignee" }
}

    Plugin Logic

  • Extract sub from JWT.

  • Build the AuthZEN request.

    • {
  "subject": { "type": "user", "id": "214cc559-1bd1-4436-ab82-621f3a414b34" },
  "resource": { "type": "role", "id": "view-documents" },
  "action": { "name": "assignee" }
}

  • Send the request to the OpenFGA PDP.
  • OpenFGA evaluates if the user has the assignee relation with view-documents.
  • The gateway enforces the decision.

    • Advance Case: AI Security with Multiples Policy Enforcement Points

    When you expose an MCP Server or MCP App you can configure the AI Gateway (PEP #1) with MCP capabilities such as Dynamic MCP Request, which lets you configure which MCP methods trigger authorization checks (e.g., tools/call), and Dynamic MCP Request Mapping, which allow you to build authorization policies based on the MCP request context, including tool names and arguments.

    {
  "pdp": {
    "host": "https://<your-authzen-pdp>",
  },
  "subject": {
    "type": "<subject_type>",
    "id": "<subject_identifier>",
    "properties": {}
  },
  "mcp": {
    "enforce_on": {
      "methods": ["tools/call"]
    }
  },
  "resource": {
    "type": "<resource_type>",
    "id": "<resource_identifier>",
    "properties": {}
  },
  "action": {
    "name": "mcp::tool::name"
  }
  "context": {
  }
}

    Then you can add other AuthZEN API Gateway (PEP #2) instance closer to the API with your desired authorization logic as well.

    Live Demo

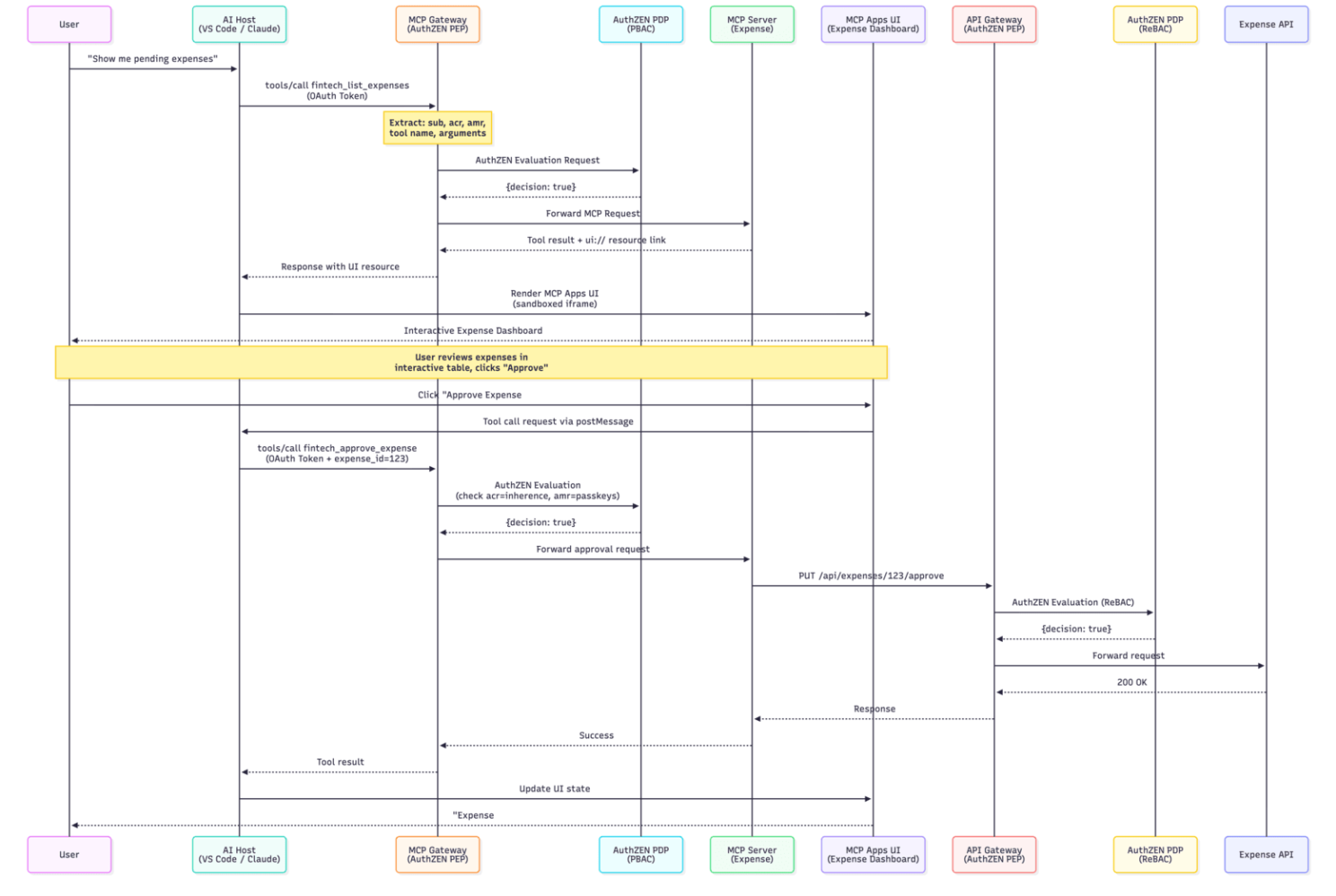

    Gateway Security Demo: Expense Management MCP App

    Placed in front of the MCP server, the MCP Gateway enforces real-time authorization for MCP tool calls and UI interactions via an external PBAC system. Only analysts authenticated with a phishing-resistant authenticator can view and approve expenses.

    Deploy just a few easy steps.

    You can run our customized AI/API Gateway image (based on Apache APISIX) or download the plugin.

    • Step 1: Download

      Run our customized AI/API Gateway image (based on Apache APISIX) or use the plugin from our organization’s GitHub repository.

    • Step 2: Configure your routes and plugin

      Configure your routes and plugin with your AuthZEN PDP and define the authorization policies.

    • Ready!

    Beta Software

    This software is currently in beta and is provided AS IS without any warranties. See the repo README for full details.
